MACHINES

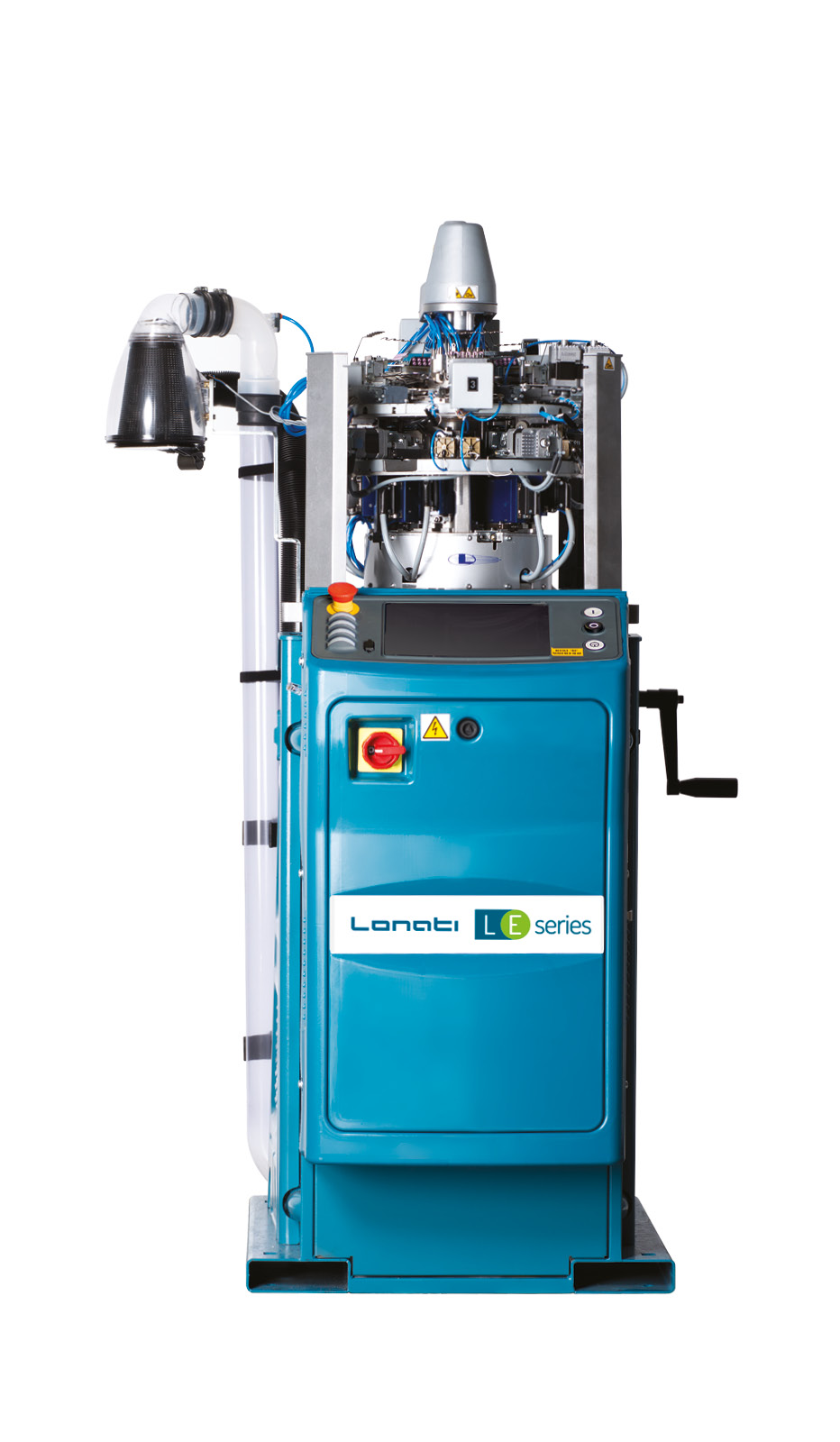

DONNA LBE41TV

Single cylinder 4 feeds machine for the production of socks and pantyhose with reciprocated heel and toe on 1 feed. 2 electronic selection units on each feed (tucking and clearing position), selector overturn by means of traditional extraction. electronic selection pattern on 2 or 4 feeds, reciprocated heel and toe option in variable size and in any area. Single or double dial jacks. Electronic device to maintain the size at any temperature of the machine.

STANDARD DEVICES

  • 40 or 26 reels yarn creel
  • Sock ejection hood
  • Yarn waste filter
  • Suction valve controlled with stepper motor
  • Rotary or fixed antitwist device
  • 5 stitch unit with pneumatic control
  • 9 pliers suction unit (plates, hooks and cut-pick)
  • 8 yarn sliding sensors

OPTIONAL

  • DREAM or DREAM ONE device for stretching socks in ejection
  • 2,2 Kw suction fan
  • Nautlilus software licence
  • Dinema GRYF yarn feeder, 12 max
  • Dinema Plus medical or bare elastomer yarn feeders, 4 max
  • Yarn sensors, 24 max
  • Motorized rising dial
  • 5 motorized stitch units
