MACHINES

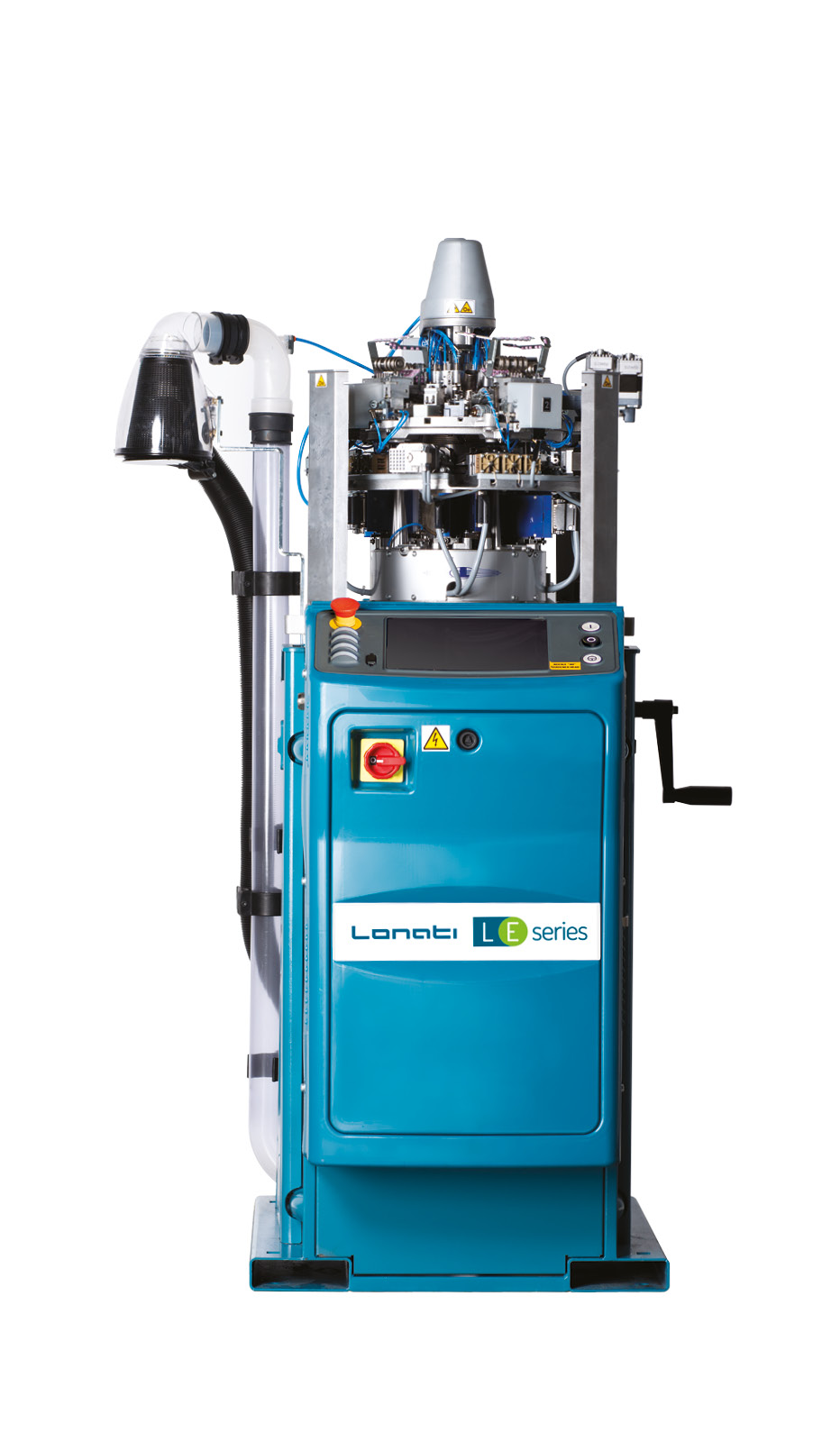

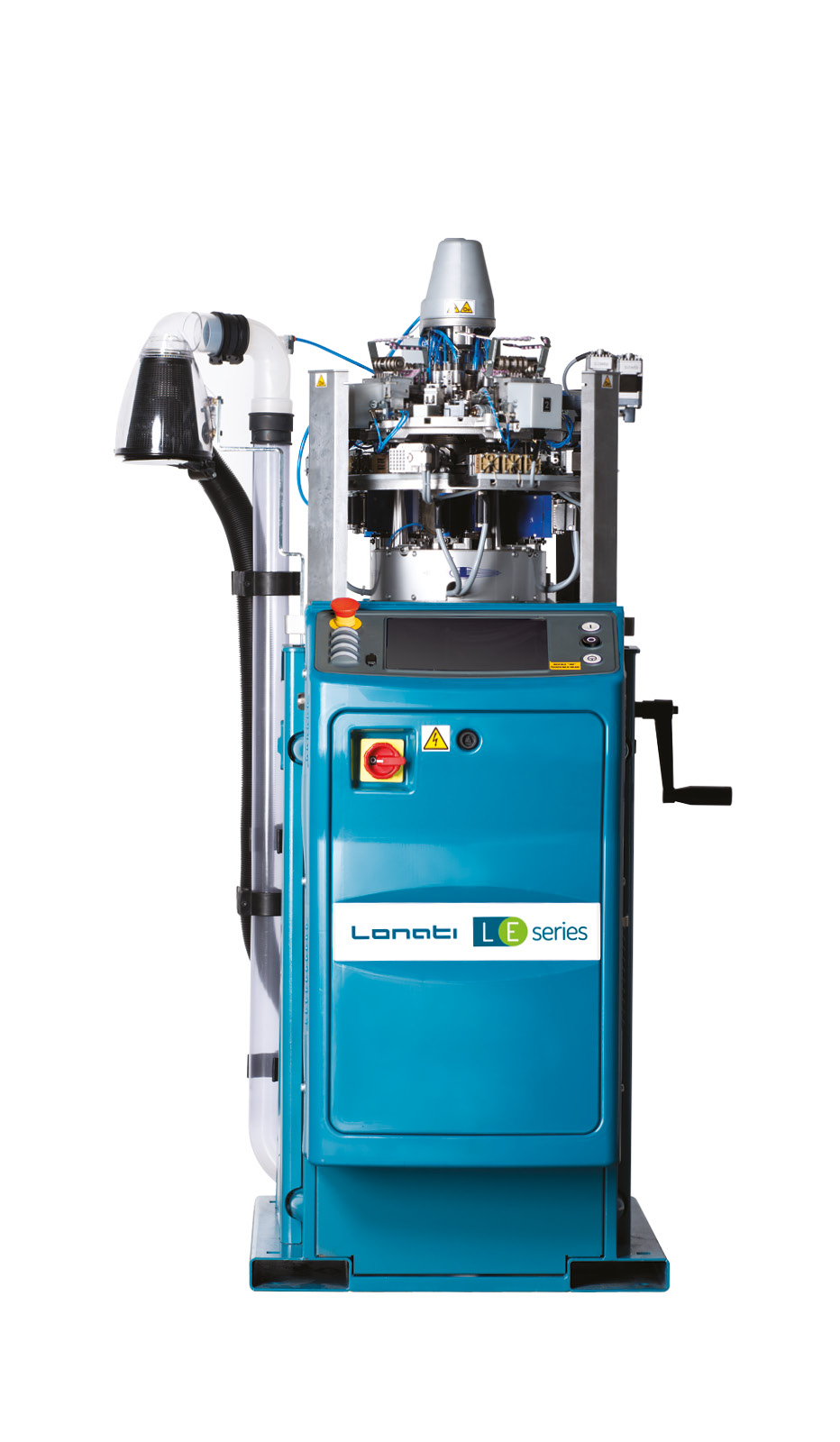

DONNA LBE08MJ

Electropneumatic single cylinder machine with 4 feeds plus 2 needle-needle selection drums on each feed (one in tucking position and one in clearing position, 8 in total) for the production of pantyhose and knee-high socks in baguette pattern, tuck, jacquard, laid-in piquet effect. 5 yarnfingers with dual pneumatic control for each feed, 1 motorized plating yarnfinger with pneumatic control for angular movement and 2 pneumatic controls to set height and depth. Stitch cams motorized for gradual or partial stitch narrowing or widening in any part of the sock. Pantyhose and knee high option with movable stitch cams with 2 colors each course, cut-boss (jacquard relief), single or double dial jacks. Electronic device to maintain the size at any temperature of the machine.

STANDARD DEVICES

  • 40 reels yarn creel
  • Sock ejection hood
  • Yarn waste filter
  • Suction valve controlled with stepper motor
  • Rotary or fixed antitwist device
  • 4 pull-out stitch unit with motorized movement of heights
  • 6 pliers suction unit (plates, hooks and cut-pick)
  • 8 yarn sliding sensors
  • Motorized radial plating on first yarnfinger
  • Extra latch-opener for open-work

OPTIONAL

  • DREAM or DREAM ONE device for stretching socks in ejection
  • 2,2 Kw suction fan
  • Nautlilus software licence
  • Dinema GRYF yarn feeder, 12 max
  • Dinema Plus medical or bare elastomer yarn feeders, 4 max
  • Yarn sensors, 24 max
  • Motorized rising dial unit
  • Knit-in device kit
